Huakun-PGC1 Electrostatic Powder Coating Machine Deal With Dead-corner And Grooves

Electrical Data
Nominal input voltage 100V-240VAC
Frequency 50-60Hz
Protection type IP54
Temperature rang 0 bis 40 +32°F to 104°F




Pneumatical data
MAX.input pressure 10bar/145psi
MIN.input pressure 6bar/87psi
Max.water vapor content of the compressed air 1.3g/Nm³
Max.oil vapor content of the compressed air 0.1mg/Nm³
Max.compressed air consumption 11Nm³/h
MIN.input pressure 5.5bar/80psi


Dimensions

Width 460mm
Depth 832mm
Height 1105mm
Weight 12kg 46kg

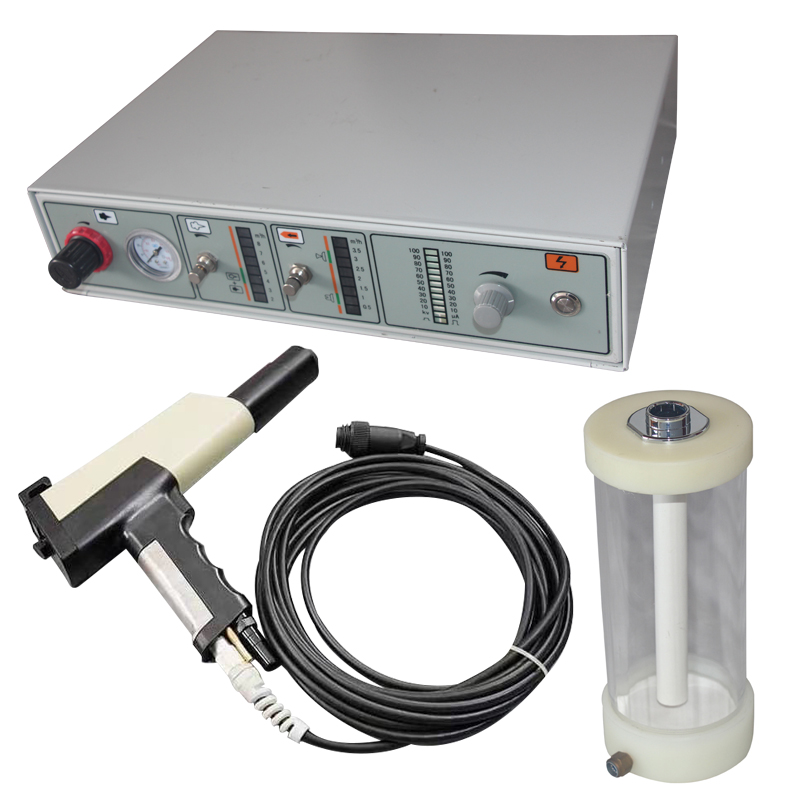

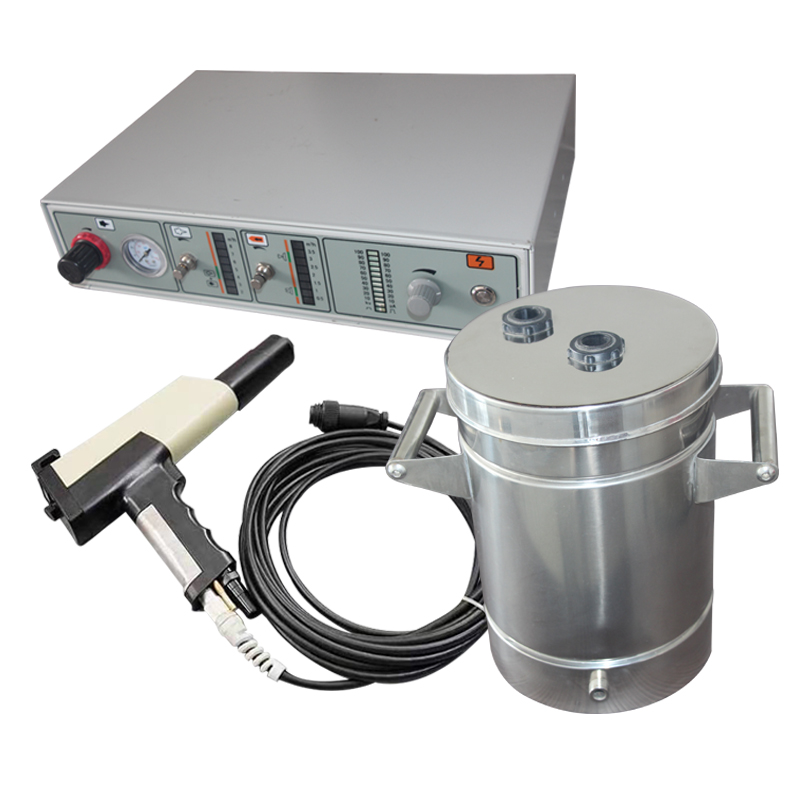

Packing List

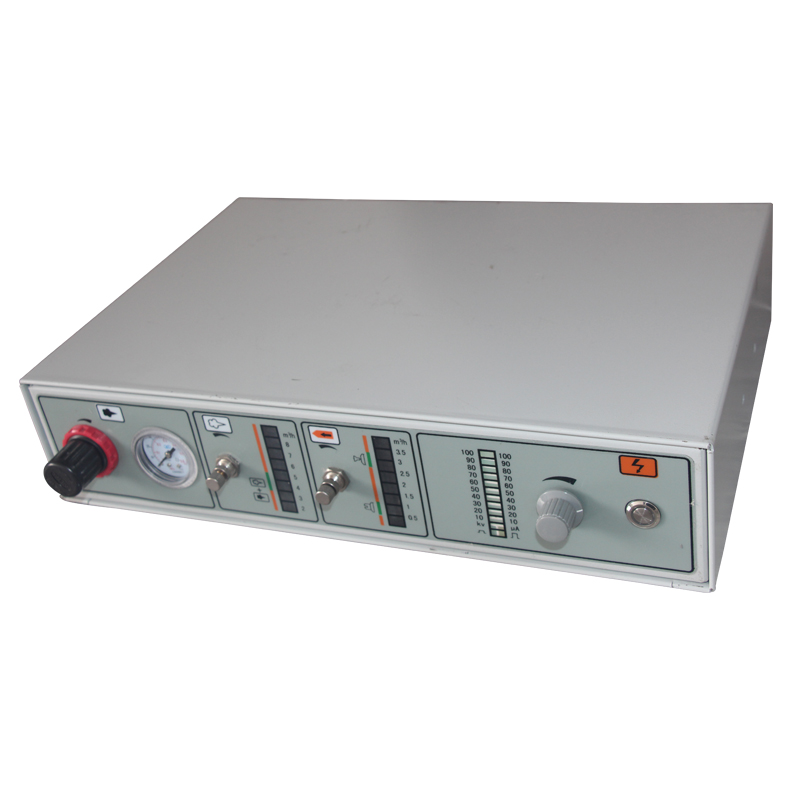

Control panel with all kindls of connectors 1 set
Cart with filter 1 set

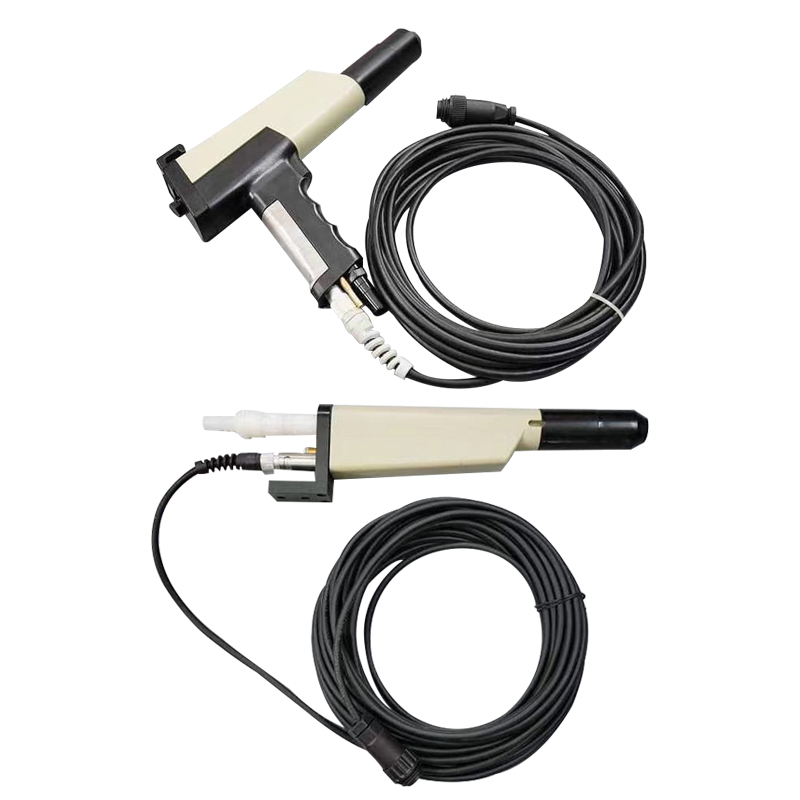

Manual coating gun with round nozzle with cable 1 set
Powder hose 1 set
Air tube 1 set
304 Stainless hopper 1 set
Injector 1 set
